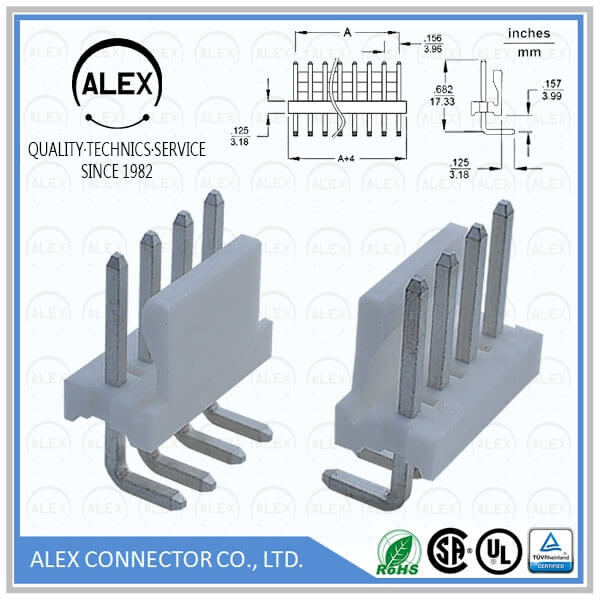

Product Name : Right Angle Header / .156"(3.96mm) WTB Connectors

Part Number: 3961-xxL

Category : Wire to Board

Pitch : .156＂(3.96mm)

Series : WTB3962

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ UL 94V-0 nylon 66
◆ 045"(1.14mm) square pin
◆ Tin-plated brass pin
◆ Plating options available
◆ Mates with ALEX 8639 Housings
◆ Mates with ALEX 9255 IDC Housings
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 7A
◆ Voltage rating: 250V AC (R.M.S.)
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40°C ~ +105°C
