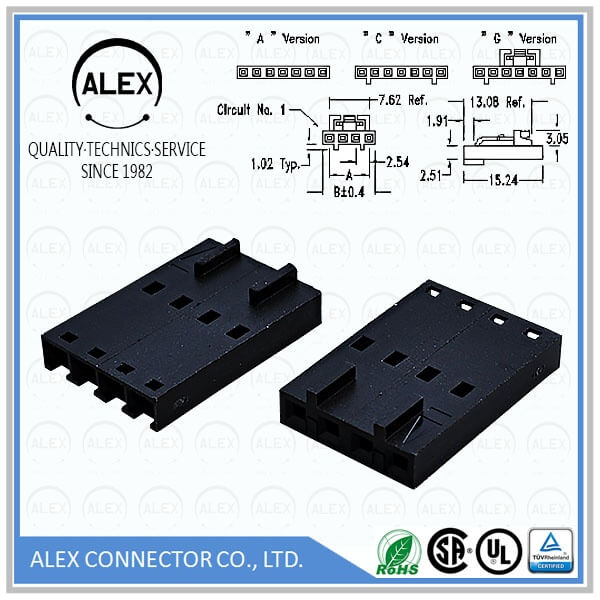

Product Name : Crimp Housing / .100"(2.54mm) Single Row Wire-to-Board Connectors

Part Number: 9566-xxC

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB254C

File : Download

Product Features

◆ 2 ~ 25 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 9558T Terminal
◆ Mates with ALEX 9567-xx Housing
◆ Mates with ALEX 9543, 9553 Headers
◆ Mates with ALEX K-254-x Key
◆ Standard color: Black
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation Resistance: 10000MΩ min.
◆ Contact resistance: Initial value/15mΩ max.
　After environmental testing/30mΩ Max.
◆ Dielectric Withstanding Voltage:
　600V (R.M.S.) AC/minute
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
