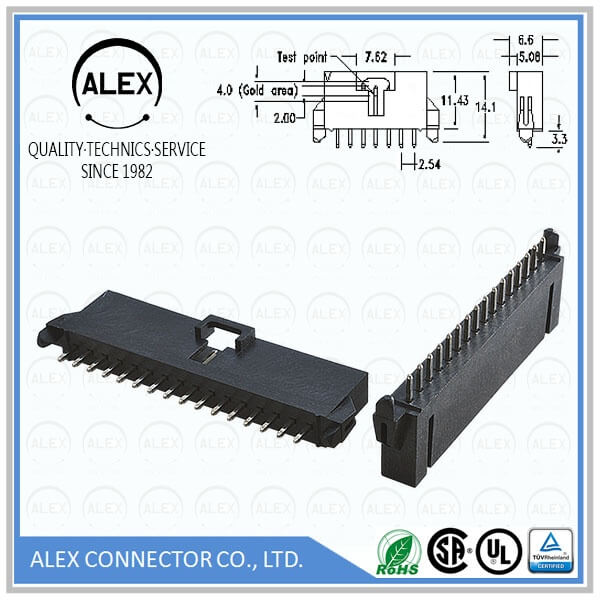

Product Name : Vertical Header / .100"(2.54mm) Single Row Wire-to-Board Connectors

Part Number: 9543-xxP-LCP

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB254C

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Plastic material: LCP
◆ Tin-plated or Gold-flash brass pin
◆ .25"(0.64mm) square pin
◆ Mates with ALEX 9566-xx housing
◆ Standard color: Black
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation Resistance: 10000MΩ min.
◆ Contact resistance: Initial value/15mΩ max.
　After environmental testing/30mΩ Max.
◆ Dielectric Withstanding Voltage:
　600V (R.M.S.) AC/minute
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
