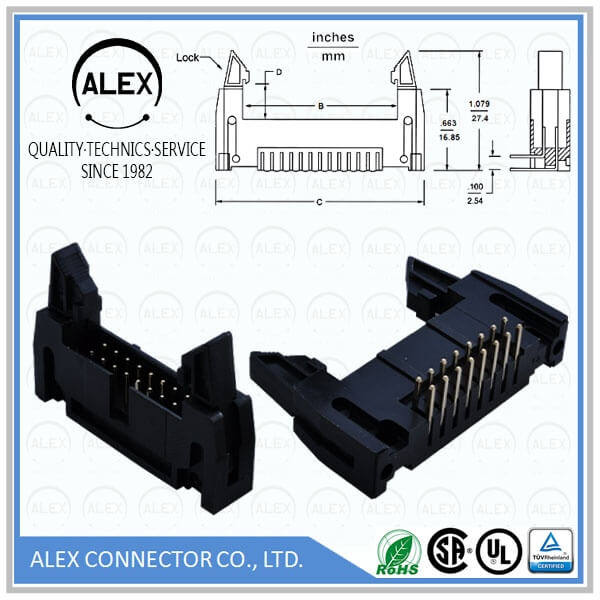

Product Name : Right Angle Header / .100"(2.54mm) Wire-to-Board Box Header Connectors

Part Number: 4801-xx

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2546

File : Download

Product Features

◆ 10 ~ 64 circuits available
◆ Material: Nylon 6T
◆ Color: Black
◆ .025"(0.64mm) square pins
◆ Gold-flash brass pin
◆ With or Without Lock
◆ Mates with ALEX 4802-xx Housing
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation Resistance: 1000MΩ min.
◆ Dielectric Withstanding Voltage:
　800V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
