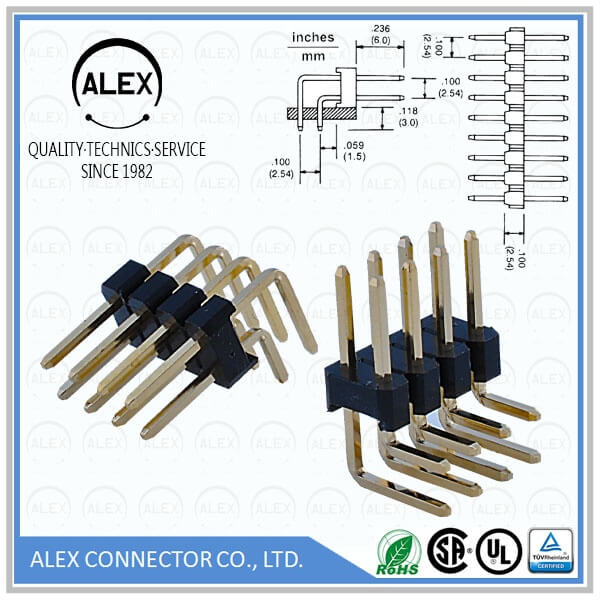

Product Name : Right Angle Header / .100"(2.54mm) Dual Row Wire-to-Board Connectors

Part Number: 6523-xx

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2544

File : Download

Product Features

◆ 4 ~ 80 circuits available
◆ PBT, UL 94V-0
◆ Contact: Brass
◆ Gold-flash plated over nickel
◆ 0.025"(0.64mm) square pin
◆ Various pin lengths available
◆ Apppicable PCB thickness: .063"(1.60mm)
◆ Mates with ALEX 6521 Housing

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
　(including temperature rise)
