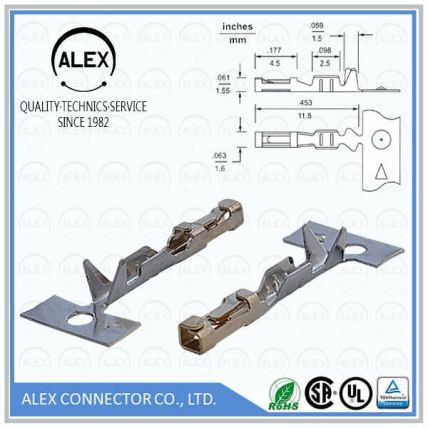

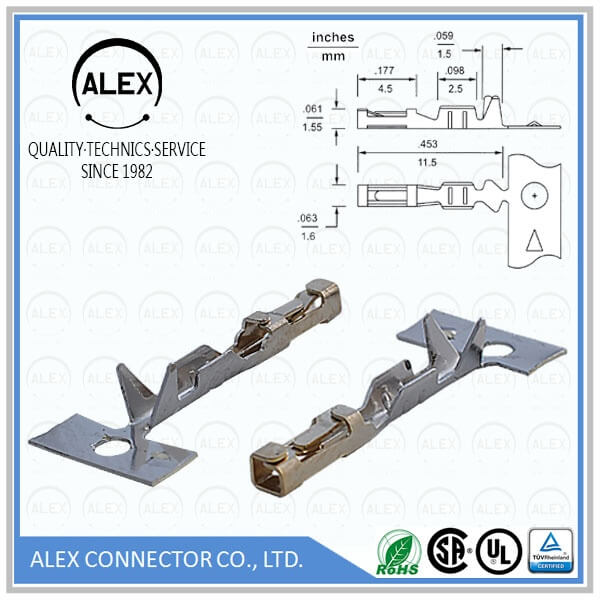

Product Name : Crimp Terminal / .100"(2.54mm) Single Row Wire-to-Board

Part Number: 65T

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2543

File : Download

Product Features

◆ Material: Brass
◆ Finished: Tin-plated or Tin-plated & Gold-flash
　(Gold flash in the contact area)
◆ Used in ALEX 6501, 6521 Housing
◆ Wire range: #22 ~ #28 AWG
◆ Thickness: 0.20mm

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
　(including temperature rise)
