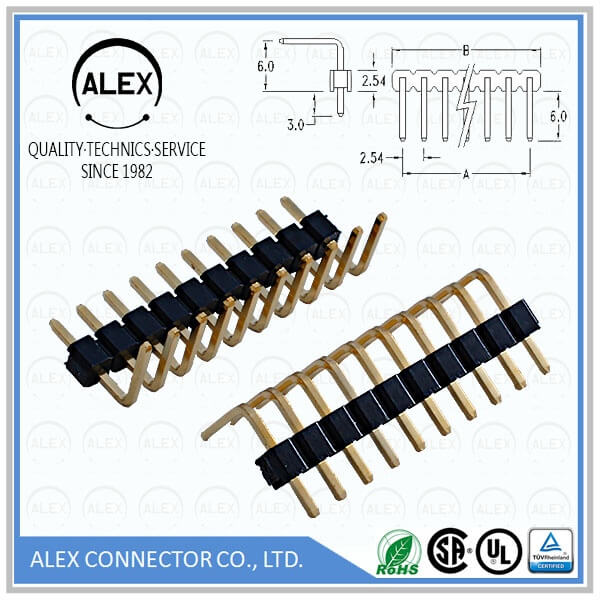

Product Name : Right Angle Flat Header / .100"(2.54mm) Single Row Wire-to-Board Connectors

Part Number: 6503-xx

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2543

File : Download

Product Features

◆ 1 ~ 40 circuits available
◆ Material: PBT, UL 94V-0
◆ Gold-flash brass pin
◆ 0.025"(0.64mm) square pin
◆ Various pin lengths available
◆ Mates with ALEX 6501 Housing
◆ Mates with 6505, 6506, 6507, 9938 Headers
◆ Stackable end-to-end

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
　(including temperature rise)
