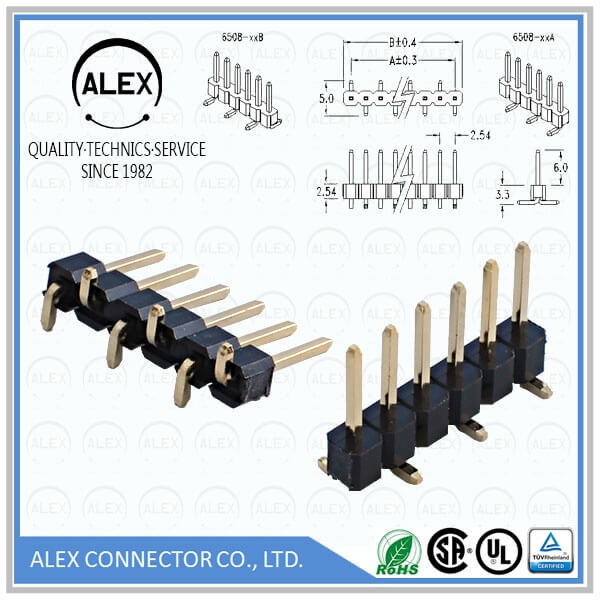

Product Name : Right Angle Header, SMT / .100"(2.54mm) Single Row Wire-to-Board Connectors

Part Number: 6508-xx

Category : Wire to Board

Pitch : .100"(2.54mm)

Series : WTB2543

File : Download

Product Features

◆ 2 ~ 40 circuits available
◆ Insulator: Nylon 6T
◆ Contact: Brass
◆ Gold flash plated over nickel
◆ 0.025"(0.64mm) square pin
◆ Various pin lengths available
◆ Mates with ALEX 6501 Housing
◆ Mates with 6505, 6506, 6507, 9938 Headers

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
 (including temperature rise)
