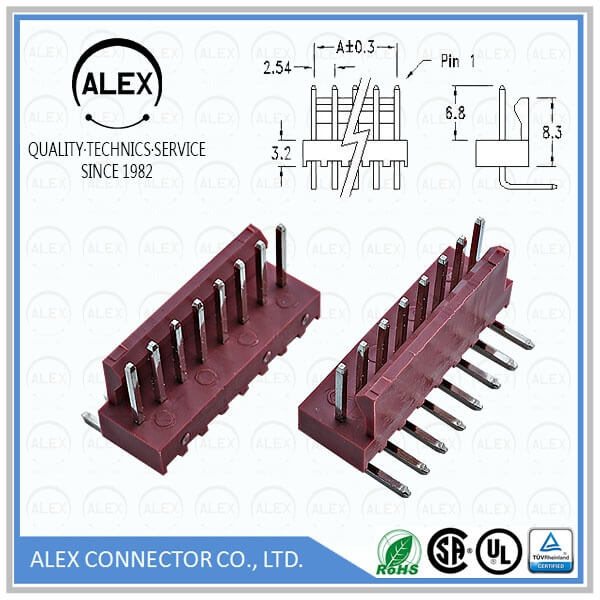

Product Name : Right Angle Pin Friction Lock Header / .100"(2.54mm) KK Type Connectors

Part Number: 2515-xxL

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2542

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Plastic material: UL 94V-0 nylon 66
◆ Pin material: Brass
◆ .025"(0.64mm) square pin
◆ Mates with ALEX 2510-xxZ Housing
◆ Friction lock
◆ Various pin lengths available
◆ Standard color: Brown
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A
◆ Voltege rating: 250V AC, DC Max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Ambient temperature range: -40°C ~ +105°C
　(Including temperature rise)
