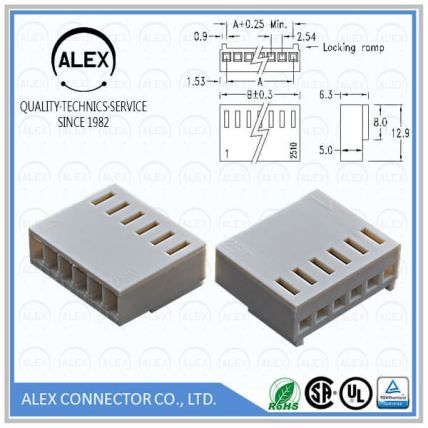

Product Name : Polarizing Housing / .100"(2.54mm) KK Type Connectors

Part Number: 2510-xx

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2541

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Material: UL 94V-0 or UL 94V-2
◆ With locking ramp
◆ Accepts ALEX 51T Terminal
◆ Mates with ALEX 2512, 2513 Headers
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A
◆ Voltege rating: 250V AC, DC Max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Ambient temperature range: -40°C ~ +105°C
　(Including temperature rise)
