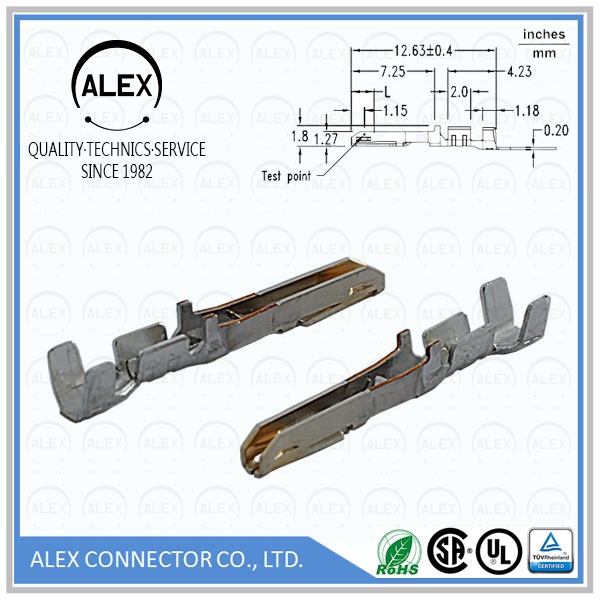

Product Name : Crimp Terminal / .098"(2.50mm) High Conductivity Power Connectors

Part Number: 2531T

Category : Wire to Board

Pitch : .098"(2.50mm)

Series : WTB2509-1

File : Download

Product Features

◆ Material: High conductivity copper alloy
◆ Used in ALEX 2532-xxS, 2532-xx housings
◆ Wire range: #20 ~ #26 AWG

Series Specifications

◆ Current rating: 4A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient Temperature rise: -40 ~ +105°C
