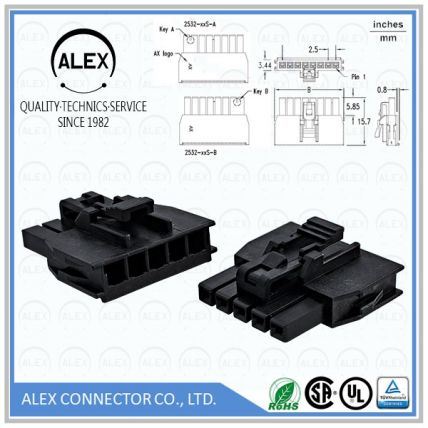

Product Name : Single Row Receptacle Housing / .098"(2.50mm) High Conductivity Power Connectors

Part Number: 2532-xxS

Category : Wire to Board

Pitch : .098"(2.50mm)

Series : WTB2509-1

File : Download

Product Features

◆ 2~8 circuits available
◆ Material: PA4T + 30%GF, UL 94V-0
◆ Color: Black or Natural
◆ Accepts ALEX 2531T terminal
◆ Accepts ALEX 2532C-xx terminal position
 Assurance retainer
◆ Mates with ALEX 2533-xxS, 2534-xxS headers

Series Specifications

◆ Current rating: 4A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient Temperature rise: -40 ~ +105°C
