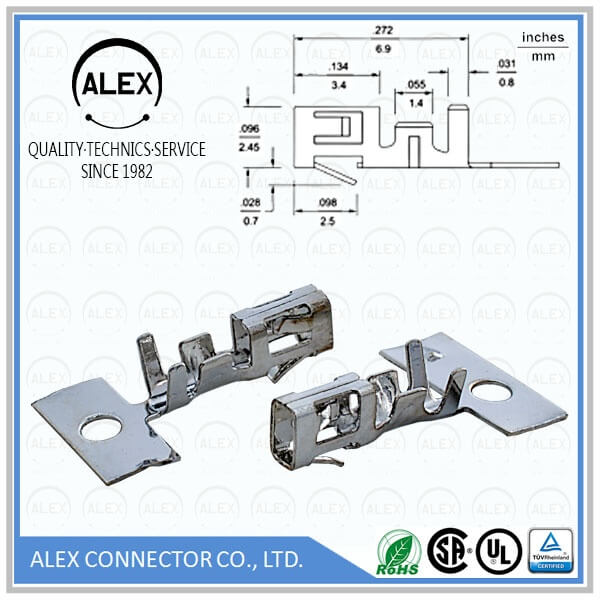

Product Name : Crimp Terminal / .098"(2.50mm) Wire to Board Connectors

Part Number: 53T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2508

File : Download

Product Features

◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated
◆ Wire range: AWG #22 ~ #28
◆ Thickness: 0.20mm
◆ Used in ALEX 2503 Housing

Series Specifications

◆ Current rating: 2.5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Dielectric withstanding voltage:
　800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
