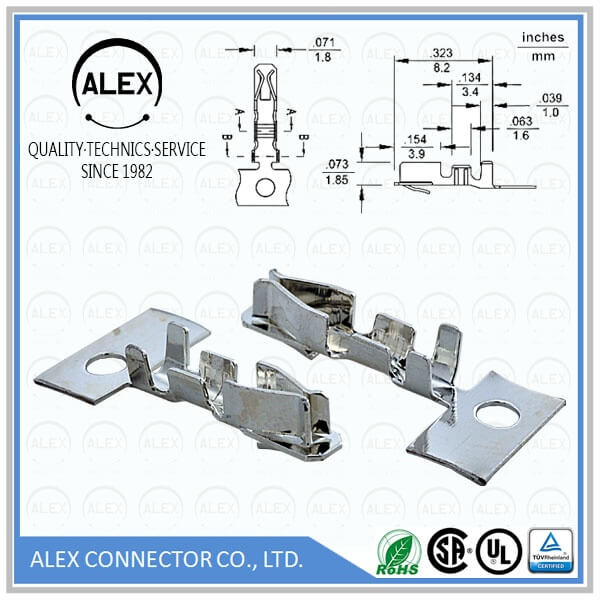

Product Name : Crimp Terminal / .098"(2.50mm) Wire-to-Board Connectors

Part Number: 2571T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2507

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated 3um over nickel 1um
◆ Used in ALEX 2572 Housing
◆ Wire range: #22 ~ #28 AWG
◆ Thickness: 0.20mm
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 30mΩ max.
◆ Dielectric strength: 1000V AC/minute
◆ Ambient temperature range: 0℃ ~ +85℃
