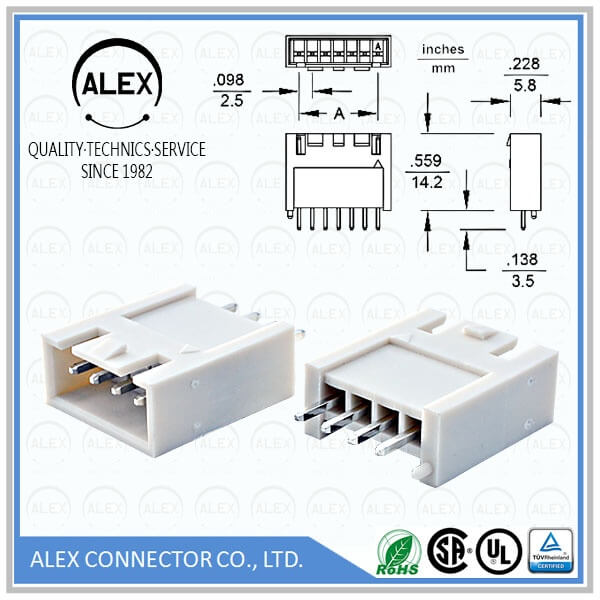

Product Name : Vertical Headers / .098"(2.50mm) Wire-to-Board Connectors

Part Number: 2573-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2507

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Plastic material: UL 94V-0 nylon 66
◆ Pin material: Brass
◆ Finished: Tin-plated 5um over nickel
◆ .025"(0.66mm) square pin
◆ Mates with ALEX 2572 Housing
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 30mΩ max.
◆ Dielectric strength: 1000V AC/minute
◆ Ambient temperature range: 0℃ ~ +85℃
