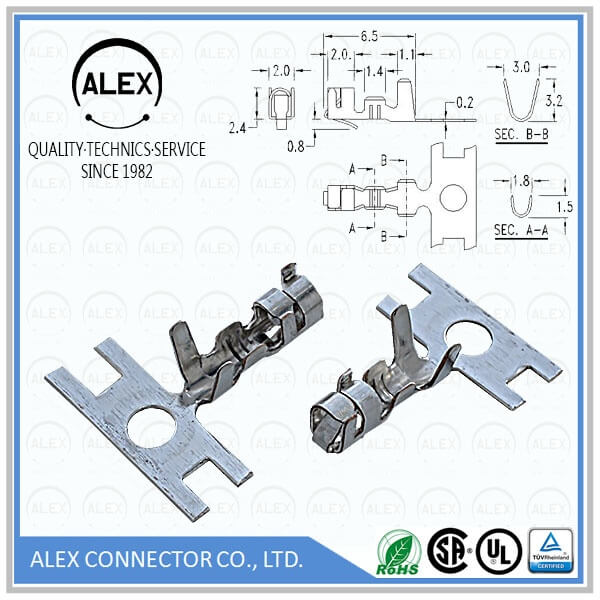

Product Name : XH Crimp Terminal / .098"(2.5mm) Center Low-Profile Wire-to-Board

Part Number: 8820T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2506

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Plating options available
◆ Used in ALEX 8821-N Housing
◆ Wire range: #22 ~ #28 AWG

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　1000V AC/minute
◆ Terminal retention force: 1.5Kg Min.
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
