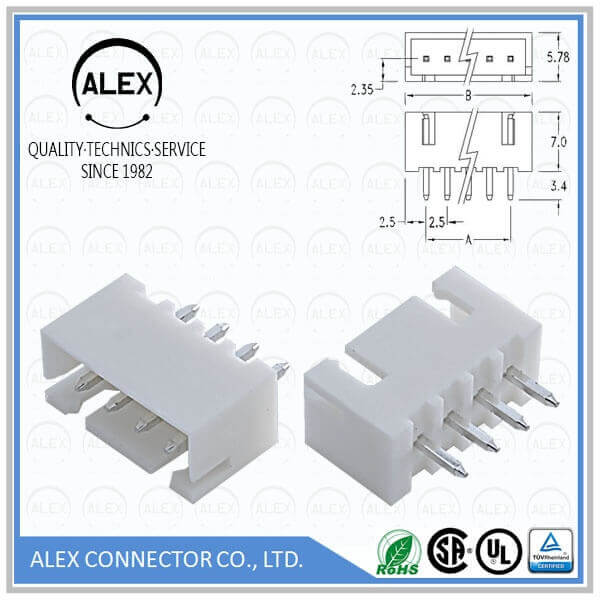

Product Name : Straight Pin Friction Lock Header / .098"(2.5mm) Center Low-Profile Wire-to-Board

Part Number: 8822-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2506

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ UL 94V-0 nylon
◆ Tin-plated brass pin
◆ Plating options available
◆ .025"(0.64mm) square pin
◆ Molded friction lock
◆ Mates with ALEX 8821-N Housing
◆ Applicable PCB thickness: .063"(1.60mm)

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric withstanding voltage:
　1000V AC/minute
◆ Terminal retention force: 1.5Kg Min.
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
