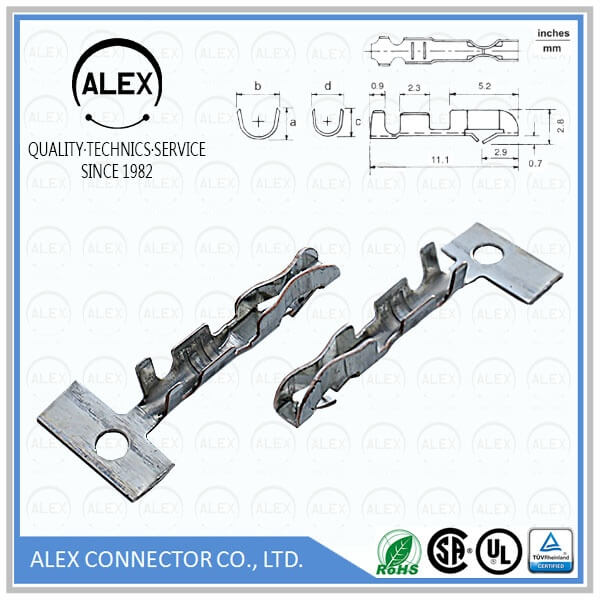

Product Name : Crimp Terminal / .098"(2.50mm) Disk Drive Power Connection System

Part Number: 26T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2504

File : Download

Product Features

◆ Material: Phosphor bronze or brass
◆ Finished: Tin-plated
◆ Wire range: AWG #20 ~ #26
◆ Insulation O.D.: .071"(1.80mm) max.
◆ Used in ALEX 1822-N Housing
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ Max.
　After environmental testing/40mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
