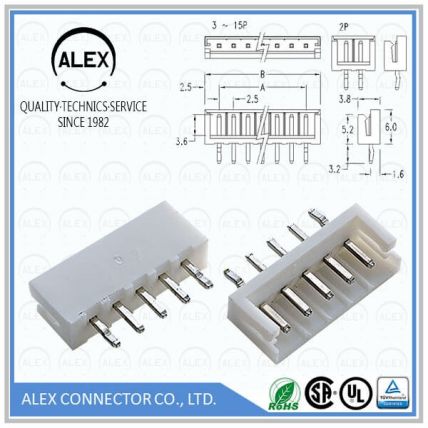

Product Name : EH Straight Header / .098"(2.50mm) Ultra-Thin Connectors

Part Number: 2582-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2503

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon
◆ .025"(0.64mm) square pin
◆ Tin-plated brass pin
◆ Mates with ALEX 2581-N Housing
◆ Standard color: White
◆ Applicable PCB Thickness:
　.031"(0.80mm) ~ .063"(1.60mm)
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ Min.
◆ Dielectric withstanding voltage: 800V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
