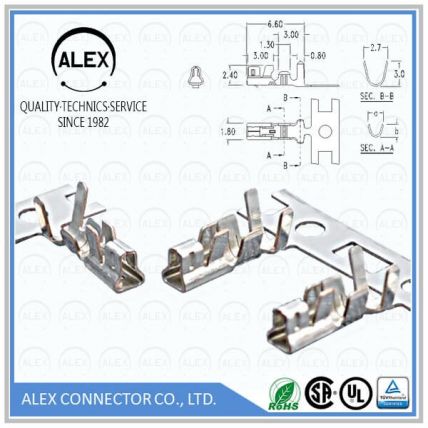

Product Name : Crimp Terminal / .098"(2.50mm) Single Row Wire-to-Board Connectors

Part Number: 2551T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2502

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 2552-N Housing
◆ Wire range: AWG #20 ~ #28
◆ Thickness: 0.20mm

Series Specifications

◆ Current rating: 3A AC, DC ( #20, #22 AWG )
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1000V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
◆ Applicable P. C. board thickness: .063"(1.60mm)
◆ UL file No.: E114003
