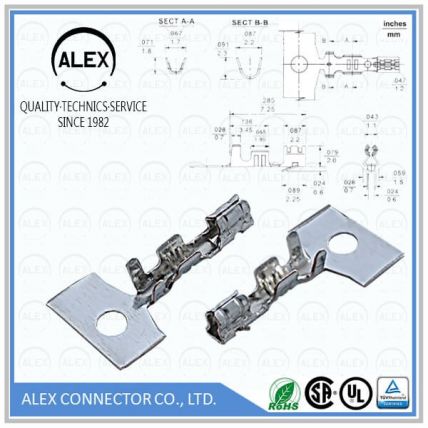

Product Name : SPOX™ Crimp Terminal / .098"(2.50mm) Wire-to-Board

Part Number: 25T

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2501

File : Download

Product Features

◆ Very low profile
◆ Material: Pre-tinned Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 2564-N Housing
◆ Anti-fishhooking design
◆ Wire range: AWG #22 ~ #28
◆ Insulation diameter: .075"(1.90mm)
◆ UL file No.: E114003
◆ CSA file No.: LR 86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ Max.
　After environmental testing/40mΩ Max.
◆ Dielectric strength: 1000V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
◆ Applicable P. C. board thickness: .063"(1.60mm)
