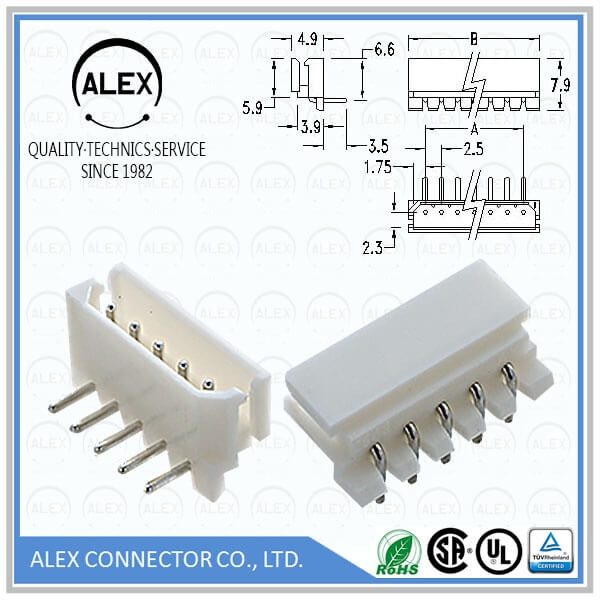

Product Name : Right Angle Pin Fully Shrouded Headers / .098"(2.50mm) Wire-to-Board

Part Number: 2568-xx

Category : Wire to Board

Pitch : .098＂(2.50mm)

Series : WTB2501

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Tin-plated brass pin
◆ .027"(0.70mm) Right angle round pin
◆ Friction lock
◆ Mates with ALEX 2564-N Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/20mΩ Max.
　After environmental testing/40mΩ Max.
◆ Dielectric strength: 1000V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
◆ Applicable P. C. board thickness: .063"(1.60mm)
