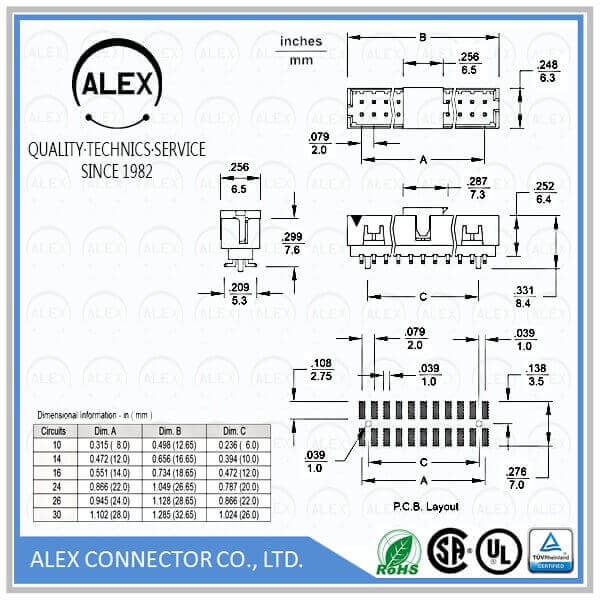

Product Name : Vertical Box Header, SMT / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2044-xx

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2008

File : Download

Product Features

◆ 10,14,16,24,26,30 circuits available
◆ Plastic Material: Nylon 6T, Black
◆ Cap material: LCP, Black
◆ .020"(0.50mm) square pin
◆ Copper alloy, Gold plating
◆ Mates with ALEX 2041 Housing

Series Specifications

◆ Current rating: 2A AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
 500V AC/minute
◆ Ambient temperature range: -55°C ~ +105°C
 (including temperature rise)
