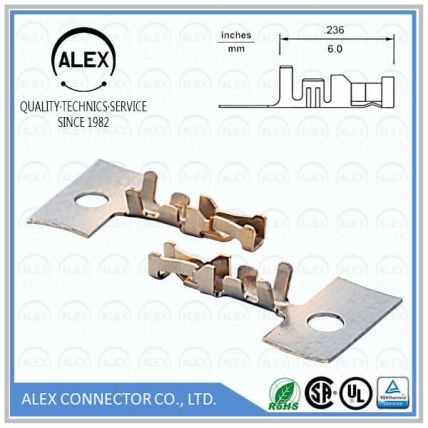

Product Name : Crimp Terminal / .079"(2.00mm) Wire to Board connectors

Part Number: 45T

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2007

File : Download

Product Features

◆ Material: Brass
◆ Finished: Gold flash
◆ Used in ALEX 4501, 4521 Housnig
◆ Wire range: AWG #26 ~ #30
◆ Thickness: 0.20mm

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Withstanding voltage: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Applicable PC thickness: 0.063”(1.60mm)
◆ Temperature range: -25℃ ~ +95℃
 (Including temperature rise)
