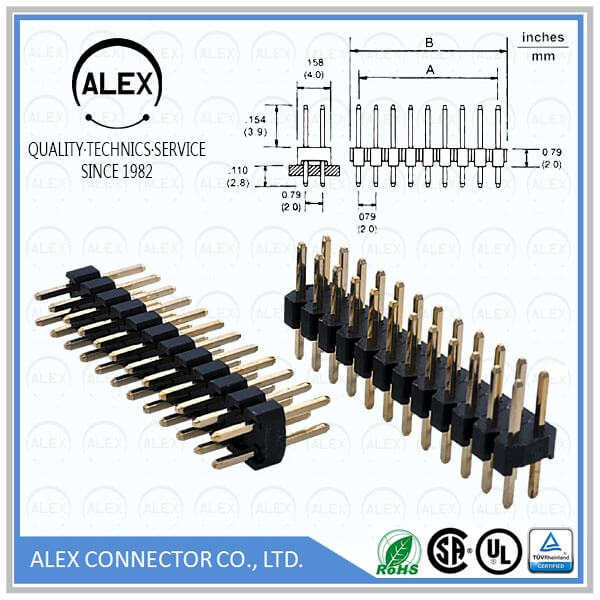

Product Name : Dual Row Straight Header / .079"(2.00mm) Wire to Board connectors

Part Number: 4522-xx

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2007

File : Download

Product Features

◆ 4 ~ 80 circuits available
◆ PBT, UL94V-0
◆ .020"(0.50mm) square pins
◆ Various pin lengths available
◆ Mates with ALEX 4521 Housing
◆ Mates with ALEX 9910 Header

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Withstanding voltage: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Applicable PC thickness: 0.063”(1.60mm)
◆ Temperature range: -25℃ ~ +95℃
 (Including temperature rise)
