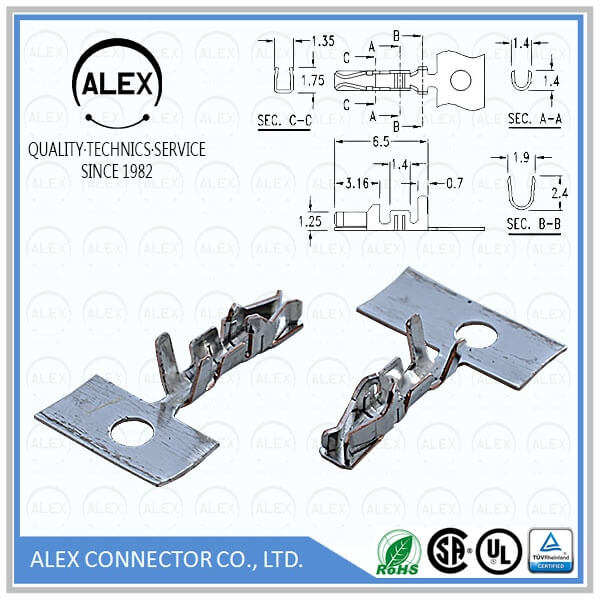

Product Name : Crimp Terminal / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2035T

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2005

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Wire range: AWG #24 ~ #30
◆ Thickness: 0.20mm
◆ Used in ALEX 2036 Housing
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
 800V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
 (including temperature rise)
