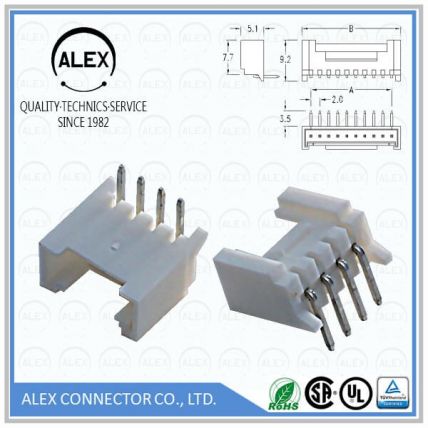

Product Name : Right Angle Header / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2038-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2005

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Material: UL 94V-0 nylon 66
◆ .020"(0.50mm) square pin
◆ Tin-plated brass pin
◆ Mates with ALEX 2036 Housing
◆ Color: White
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
　800V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
