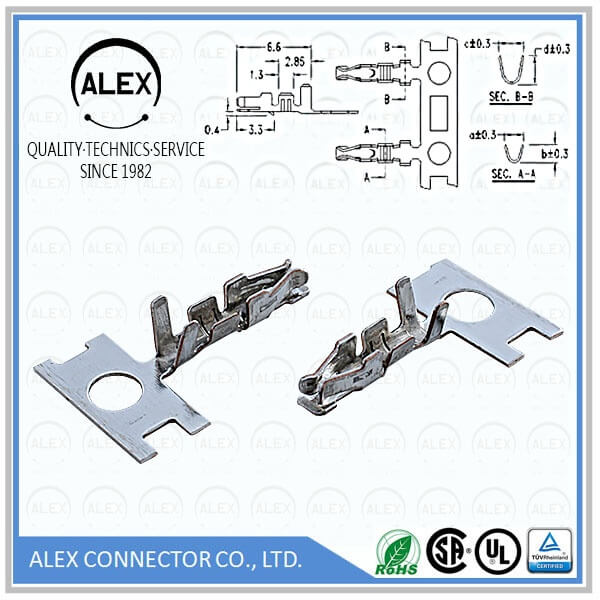

Product Name : Crimp Terminal / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2025T

Category : Wire to Board

Pitch : .079"(2.00mm)

Series : WTB2003

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 2026-N, 2046-N Housings
◆ Wire range: AWG #22 ~ #28
◆ Thickness: 0.20mm
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
 After environmental testing/20mΩ max
◆ Insulation resistance: 1000MΩ min.
◆ Withstanding voltage: 800V AC/minute
◆ Temperature rise: -25°C ~ +85°C max.
 (including temperature rise)
