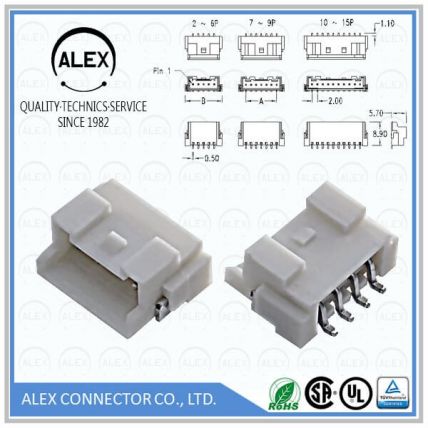

Product Name : PA Right Angle Header, SMT / .079"(2.00mm) Wire-to-Board Conncetion System

Part Number: 2050-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2003

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: Nylon 6T, UL 94V-0
◆ Contact & solder tab: Tin-plated brass pin
◆ .20"(0.50mm) square pin
◆ Mates with ALEX 2046-N Housing
◆ Color: Natural
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ max
◆ Insulation resistance: 1000MΩ min.
◆ Withstanding voltage: 800V AC/minute
◆ Temperature rise: -25°C ~ +85°C max.
　(including temperature rise)
