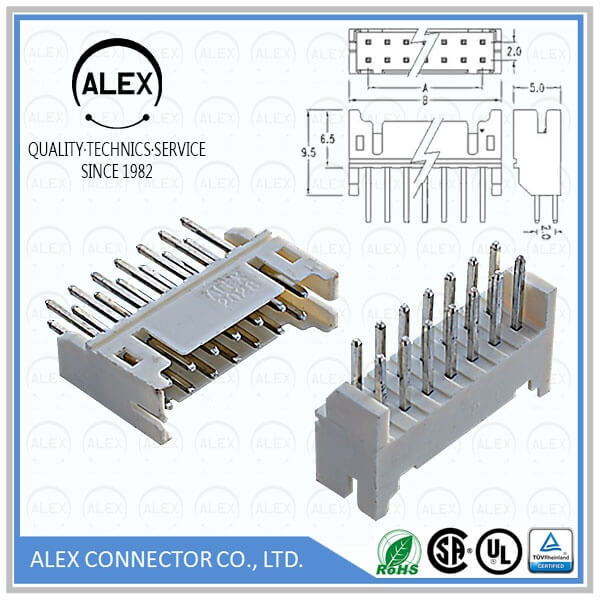

Product Name : Straight Pin Header / .079"(2.0mm) Dual Row Wire-to-Board Connectors

Part Number: 2028-xx-180

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2002

File : Download

Product Features

◆ 4 ~ 32 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Tin-plated brass pin
◆ .020"(0.5mm) square pin
◆ Mates with ALEX 2026-N Housing
◆ Color: Nature
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 800V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
