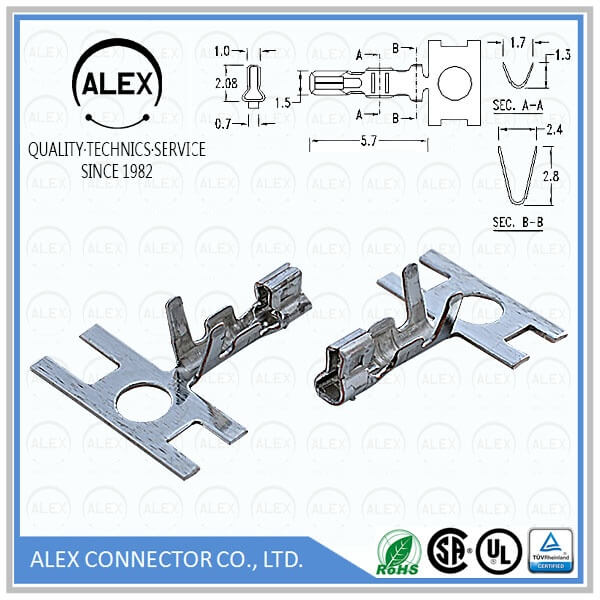

Product Name : Crimp Terminal / .079"(2.00mm) Ultra-Small Wire-to-Board Connectors

Part Number: 2015T

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2001

File : Download

Product Features

◆ Material: Tin-plated Phosphor bronze
◆ Wire range: #24 ~ #30 AWG
◆ Used in ALEX 2016-N Housing
◆ Insulation O.D.: .035"(0.90mm) ~
　.059"(1.50mm)
◆ Thickness: 0.20mm
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ Max.
◆ Dielectric withstanding voltage:
　800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
