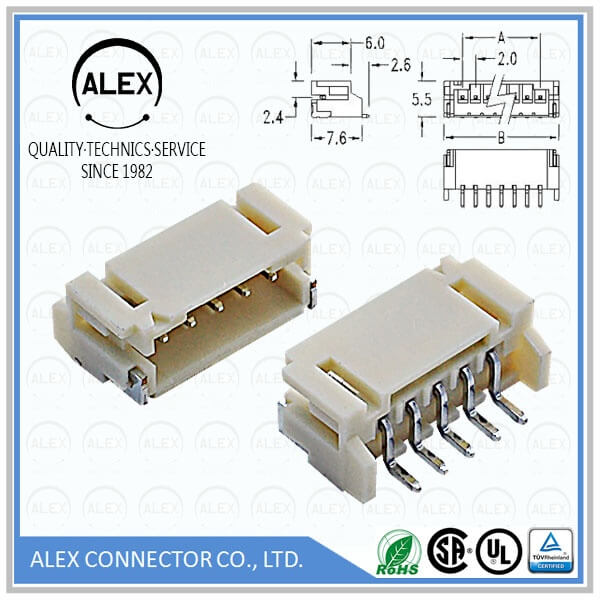

Product Name : Side Entry Type / .079"(2.00mm) Ultra-Small Wire-to-Board Connectors

Part Number: 2018-xxSM

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2001

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Material: UL 94V-0 nylon 6T
◆ Tin-plated brass pin
◆ .020"(0.50mm) square pin
◆ Mate with ALEX 2016-N housing
◆ Applicable P.C.B. thickness:
　.031" ~ .063"(0.8 ~ 1.6mm)
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ Max.
◆ Dielectric withstanding voltage:
　800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
