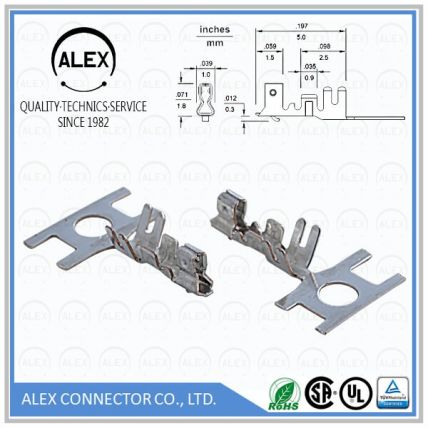

Product Name : Crimp Terminal / .059"(1.50mm) Wire-to-Board Connectors

Part Number: 1511T

Category : Wire to Board

Pitch : .059＂(1.50mm)

Series : WTB1502

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 1512-N Houing
◆ Wire range: #24 ~ #30 AWG
◆ Thinckness: 0.15mm
◆ Q'ty: 10Kpcs / Reel

Series Specifications

◆ Current rating: 1.5A(AWG #30) ~ 3.0A(AWG #24)
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
◆ Withstanding voltage: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
