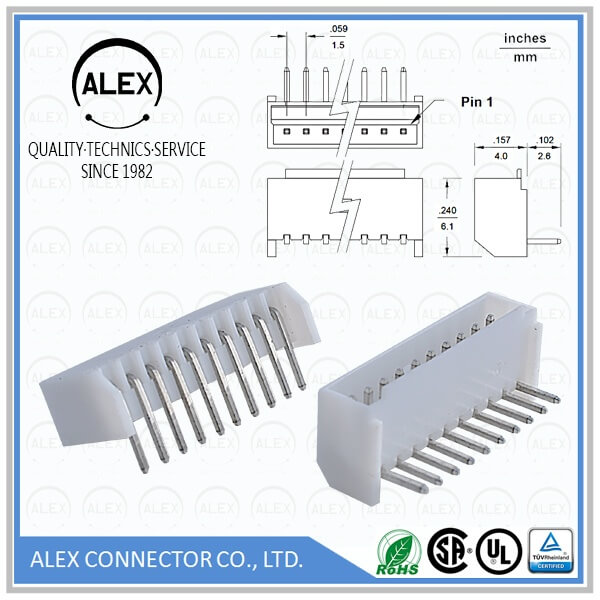

Product Name : Right Angle Header / .059"(1.50mm) Wire-to-Board Connectors

Part Number: 1514-xx

Category : Wire to Board

Pitch : .059＂(1.50mm)

Series : WTB1502

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Plastic Material: Nylon 9T, UL 94V-0
◆ Semi-Gloss tin brass pin
◆ .16"(0.40mm) square pin
◆ Mates with ALEX 1512-N Housing

Series Specifications

◆ Current rating: 1.5A(AWG #30) ~ 3.0A(AWG #24)
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
◆ Withstanding voltage: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
