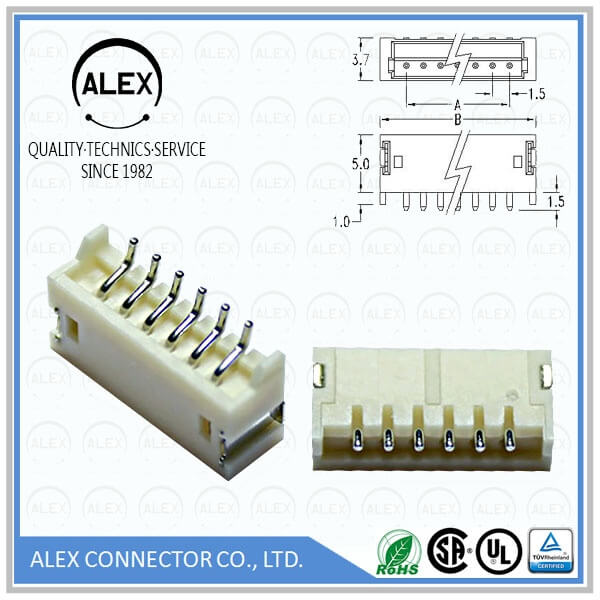

Product Name : Side Entry Type Header, SMT / .059"(1.50mm) Wire-to-Board Connectors

Part Number: 1507-xx

Category : Wire to Board

Pitch : .059＂(1.50mm)

Series : WTB1501

File : Download

Product Features

◆ 2 ~ 13 circuits available
◆ Contact: Tin-plated brass
◆ Insulation: Nylon 9T, UL 94V-0
◆ Mates with ALEX 1502-N Housing
◆ Standard color: Natural (ivory)
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 0.7A AC, DC (AWG #28)
◆ Voltage rating: 50V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/30mΩ max.
◆ Withstanding voltage: 500V AC/minute
◆ Insulation resistance: 500MΩ min.
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
