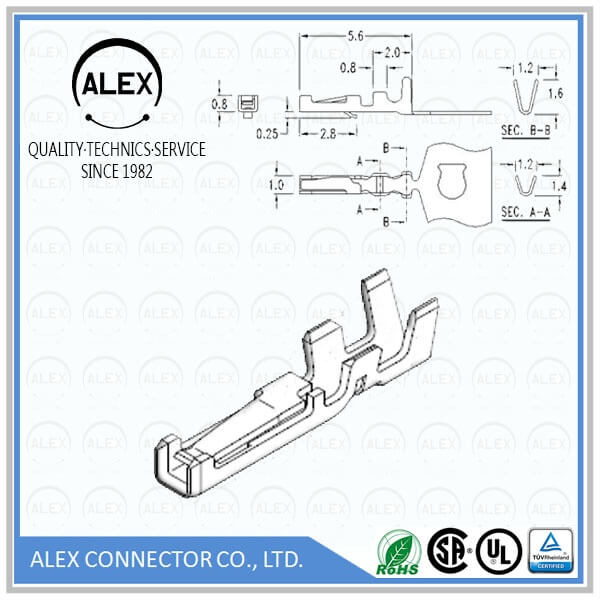

Product Name : Crimp Terminal / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9826T

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1253

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Gold-flash (10u")
◆ Used in ALEX 9827-N housing
◆ Wire range: #28 ~ #32 AWG
◆ Thickness: 0.15mm

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: 20mΩ max.
◆ Insulation resistance: 100MΩ min.
◆ Dielectric withstanding voltage:
　250V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
