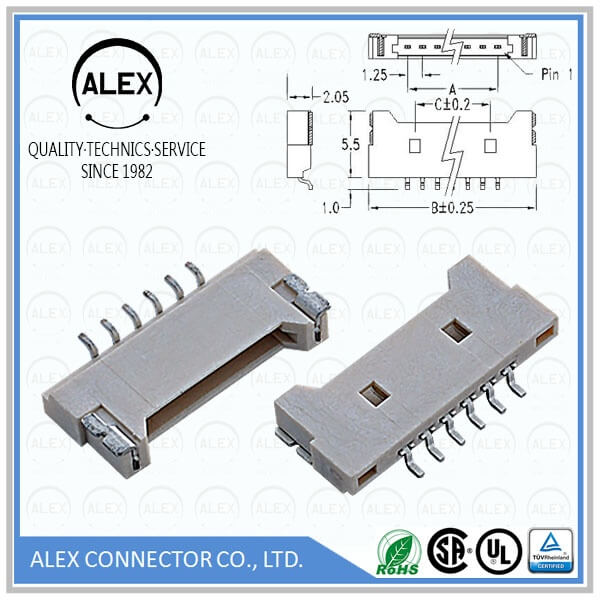

Product Name : Right Angle Header, SMT / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9828-xx

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB1253

File : Download

Product Features

◆ 2 ~ 30 circuits available
◆ Material: PBT UL 94V-0
◆ Tin-plated phosphr bronze
◆ Mates with ALEX 9827 Housing

Series Specifications

◆ Current rating: 1A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: 20mΩ max.
◆ Insulation resistance: 100MΩ min.
◆ Dielectric withstanding voltage:
　250V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(Including temperature rise)
