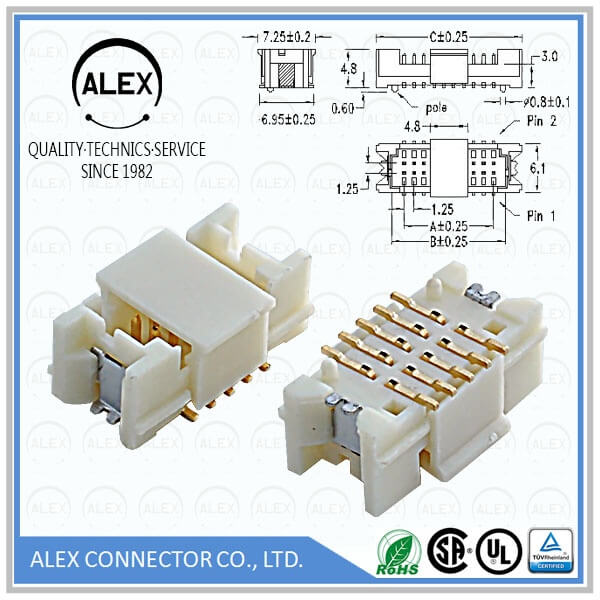

Product Name : Vertical Header, SMT / .049"(1.25mm) Wire-to-Board Connector

Part Number: 9816-xx

Category : Wire to Board

Pitch : .049"(1.25mm)

Series : WTB1252

File : Download

Product Features

◆ 10, 14, 20, 30, 40 circuits available
◆ Insulation: Nylon 9T
◆ Contact: Gold-flash brass pin
 Other: Tin-plated brass
◆ .014"(0.35mm) square pin
◆ Mates with ALEX 9815 Housing
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A
◆ Voltage rating: 100V
◆ Contact resistance: 20mΩ max.
◆ Dielectric strength: 500V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
 (Including temperature rise)
