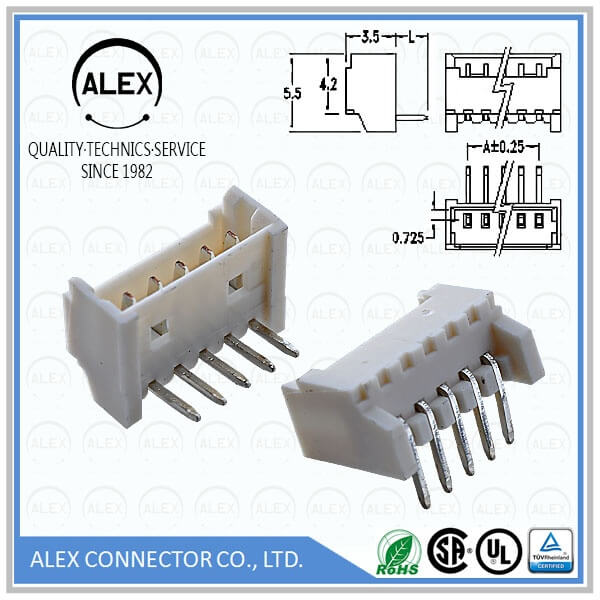

Product Name : Right Angle Header / .049"(1.25mm) Wire-to-Board Connectors

Part Number: 9848-xx-A-L

Category : Wire to Board

Pitch : .049＂(1.25mm)

Series : WTB125A

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Finished: Tin-plated Phosphor bronze
◆ Recommended PCB thickness: 0.8 ~ 1.6mm
◆ Mates with ALEX 9821-N Housing
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A (0.8A for #32 AWG)
◆ Voltage rating: 125V
◆ Insulation resistance: 100MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Dielectric withstanding voltage:
　250V AC/minute
◆ Ambient temperature range: -40℃ ~ +85℃
　(Including temperature rise)
