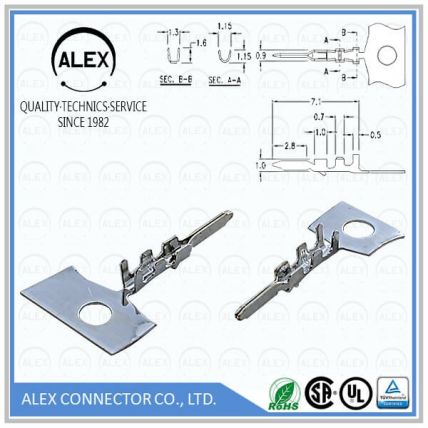

Product Name : Male Crimp Terminal / .049"(1.25mm) WTW Crimp Terminal Housing

Part Number: 9825T

Category : Wire to Wire

Pitch : .049"(1.25mm)

Series : WTW125A

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 9822-N housing
◆ Wire range: AWG #28 ~ #32
◆ Thickness: 0.15mm
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A (0.8A for #32 AWG)
◆ Voltage rating: 125V
◆ Insulation resistance: 100MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Dielectric withstanding voltage: 250V AC/minute
◆ Ambient temperature range: -40℃ ~ +85℃
 (Including temperature rise)
