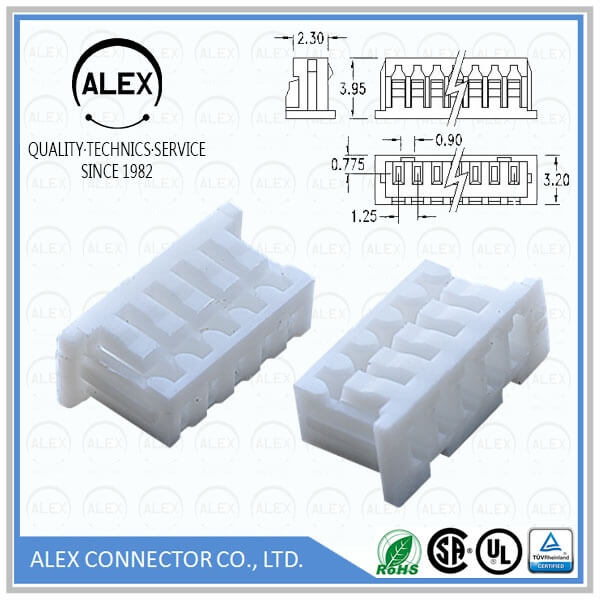

Product Name : Receptacle Housing / .049"(1.25mm) WTW Crimp Terminal Housing

Part Number: 9821-xx

Category : Wire to Wire

Pitch : .049＂(1.25mm)

Series : WTW125A

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 9858T terminal
◆ Mates with ALEX 9822-N Housing
◆ Mates with ALEX 9847-N, 9848-N, 9849-N,
　9850-N Headers
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A (0.8A for #32 AWG)
◆ Voltage rating: 125V
◆ Insulation resistance: 100MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Dielectric withstanding voltage: 250V AC/minute
◆ Ambient temperature range: -40℃ ~ +85℃
　(Including temperature rise)
