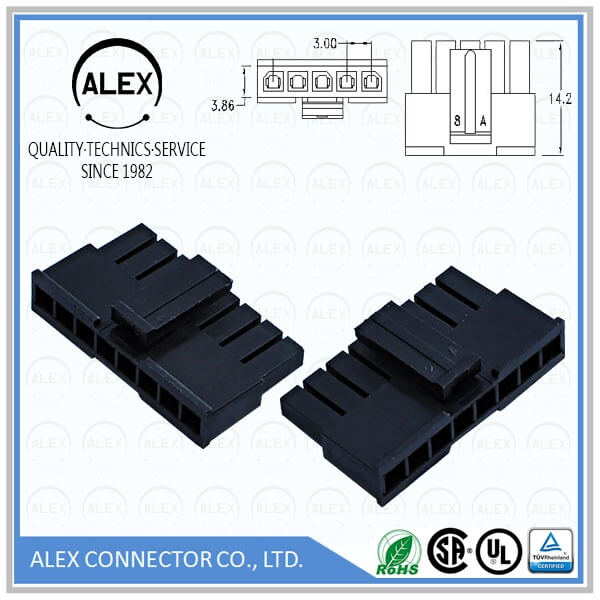

Product Name : Receptacle Housing / .118"(3.00mm) Single Row Wire-to-Board Connectors

Part Number: 3025-xxS

Category : Wire to Board

Pitch : .118"(3.00mm)

Series : WTB300E

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Standard color: Black
◆ Accepts ALEX 3030Tx, 3030Tx-L Terminals
◆ Mates with ALEX 3020-xxS Housing
◆ Mates with ALEX 3045-xxS, 3046-xxS,
 3047-xxS, 3048-xxS Headers
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
 (carry rated current load)
