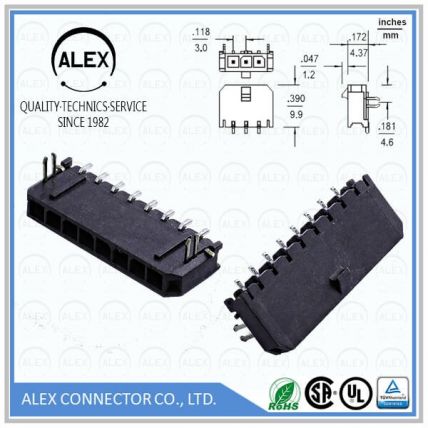

Product Name : Right Angle Header, SMT / .118"(3.00mm) Single Row Wire-to-Board Connectors

Part Number: 3048-xxSRC

Category : Wire to Board

Pitch : .118＂(3.00mm)

Series : WTB300E

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: LCP
◆ Tin-plated brass pin
◆ With solderable retention clip
◆ Recommended PCB Thickness: .062"(1.57mm)
◆ Mates with ALEX 3025-xxS Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
　(carry rated current load)
