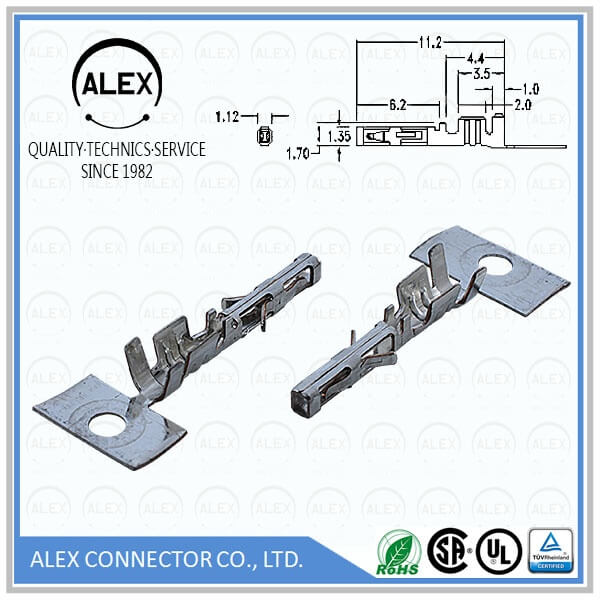

Product Name : Crimp Terminal / .118"(3.00mm) Dual Row Wire-to-Board Connectors

Part Number: 3030Tx-L

Category : Wire to Board

Pitch : .118＂(3.00mm)

Series : WTB300D

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated or Gold flash
◆ Used in ALEX 3025-xxS, 3025-xx housings
◆ Wire range: #20 ~ #30 AWG
◆ Thickness: 0.20mm
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
　(carry rated current load)
