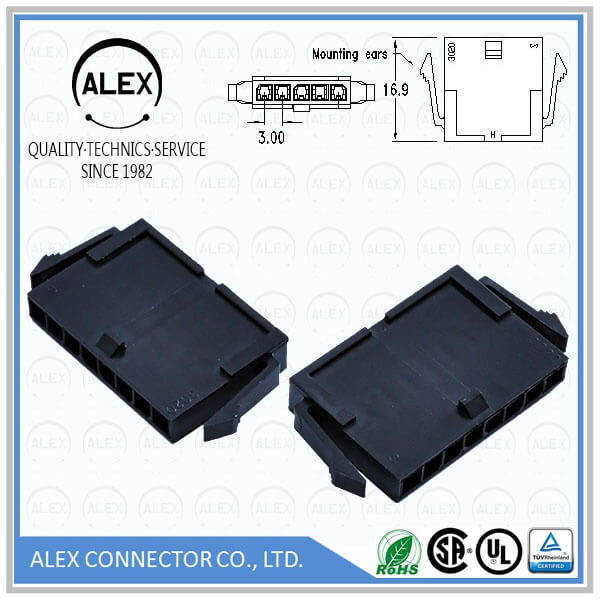

Product Name : Single Row Plug Housing / .118"(3.00mm) WTW Crimp Terminal Housing

Part Number: 3020-xxES

Category : Wire to Wire

Pitch : .118"(3.00mm)

Series : WTW300E

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-0 nylon 66
◆ With mounting ears
◆ Standard color: Black
◆ Recommended panel thickness: 1.57mm
◆ Accepts ALEX 3031T Terminals
◆ Mates with ALEX 3025-xxS Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating: 5A Max. AC/DC
◆ Voltage rating: 250V AC(RMS) or DC
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Temperature rise: 30°C Max.
 (carry rated current load)
