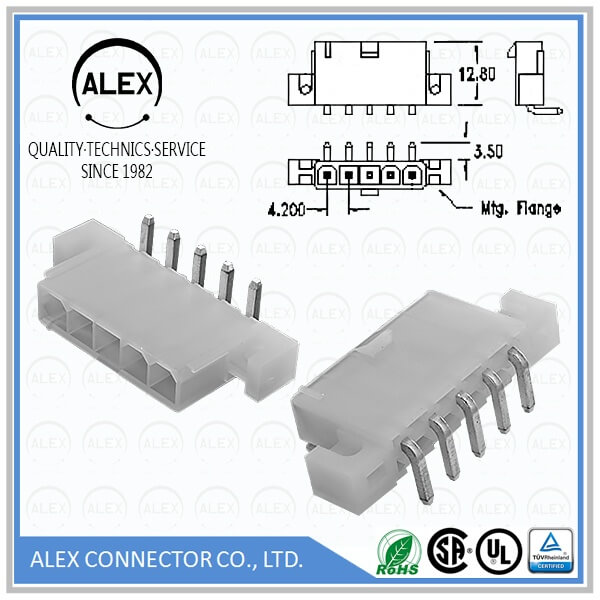

Product Name : Single Row Right Angle Header / .165"(4.20mm) WTB Connection System

Part Number: 9360-xxSF

Category : Wire to Board

Pitch : .165＂(4.20mm)

Series : WTB420H

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ UL 94V-2 nylon 66
◆ Tin-plated brass pin
◆ .045”(1.14mm) square pin
◆ Positive housing locks
◆ With Mtg. Flanges
◆ Mates with ALEX 9357-xxS Housings
◆ UL file No.: E114003

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
