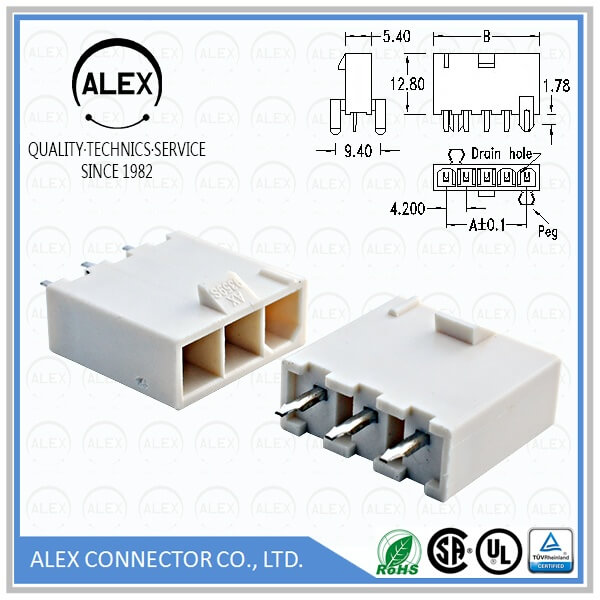

Product Name : Single Row Vertical Header / .165"(4.20mm) WTB Connection System

Part Number: 9359-xxS-46

Category : Wire to Board

Pitch : .165"(4.20mm)

Series : WTB420H

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Pin materail: Tin-plated brass
◆ Without Pegs and Without drain holes
◆ Mates with ALEX 9357-xxS Housing
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
 After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
 (Including temperature rise)
