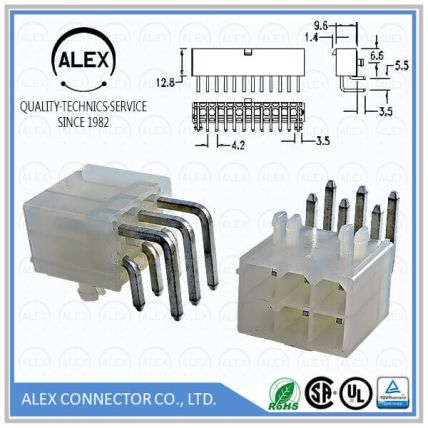

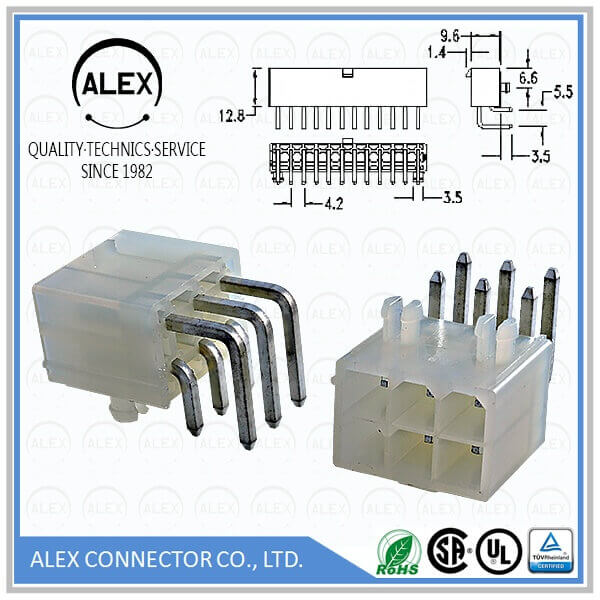

Product Name : Mini Fit Right Angle Header / .165"(4.20mm) Power Connector

Part Number: 9360-xxP

Category : Wire to Board

Pitch : .165＂(4.20mm)

Series : WTB420G

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ UL 94V-0 or 94V-2 nylon 66
◆ Tin-plated brass pin
◆ .045”(1.14mm) square pin
◆ Mates with ALEX 9357, 9361 Housings
◆ Recommended PCB thickness: .07"(1.78mm) Max.
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
