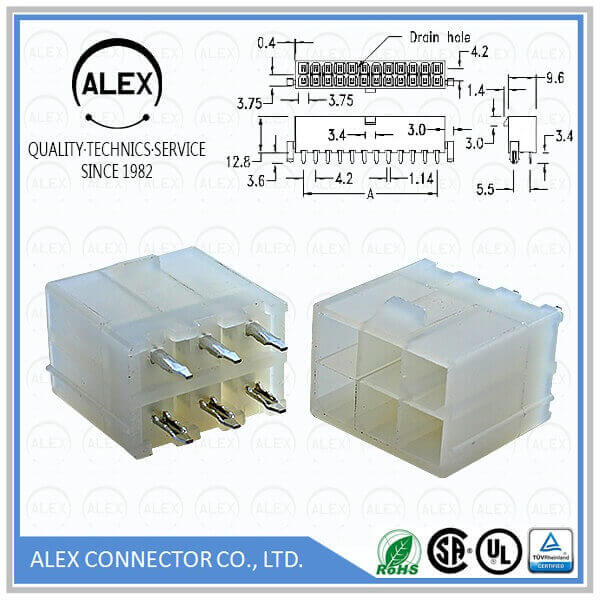

Product Name : Mini Fit Vertical Header / .165"(4.20mm) Power Connector

Part Number: 9359-xx

Category : Wire to Board

Pitch : .165＂(4.20mm)

Series : WTB420G

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ UL 94V-2 nylon 66
◆ Tin-plated or Gold-flash brass
◆ Positive housing locks
◆ Without mounting pegs
◆ Without drain holes
◆ Mates with ALEX 9357, 9361 Housings
◆ UL file No.: E114003
◆ CSA file No.: LR86545

Series Specifications

◆ Current rating up to 9A (with #18 AWG)
◆ Voltage rating: 600V AC, DC
◆ Insulation resistance: DC 500V 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
