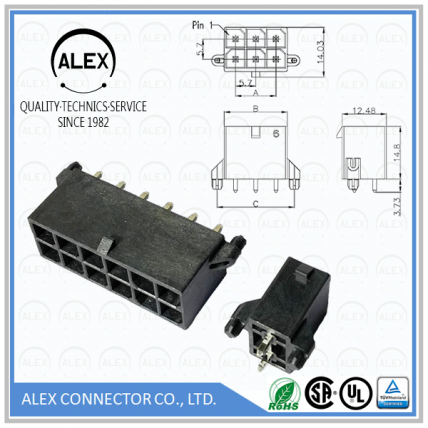

Category : Wire to Board

Pitch : .224"(5.7mm)

Series : WTB

File : Download

Product Features

◆2 ~ 12 circuits available

◆Material: LCP, Black color

◆Contact: High conductivity copper

◆Finished: Tin-plated

◆.043"(1.08mm) square pin

◆Mates with ALEX 5702-xx housing

Series Specifications

◆Current rating: 23A at 12AWG

◆Voltage rating: 600V AC (RMS) or 600V DC Max.

◆Contact resistance: 10mΩ   Max.

◆Insulation resistance: 1000MΩ   Min.

◆Dielectric withstanding voltage: 2200V AC/minute

◆Ambient temperature range: -40°C ~ 105°C
